Radiomaster TX12 MKII CC2500 Controller

Features

Added ExpressLRS Backpack support

Updated main board design from STM32F207 to STM32F407

Improved USB-C QC 3.0 Charging

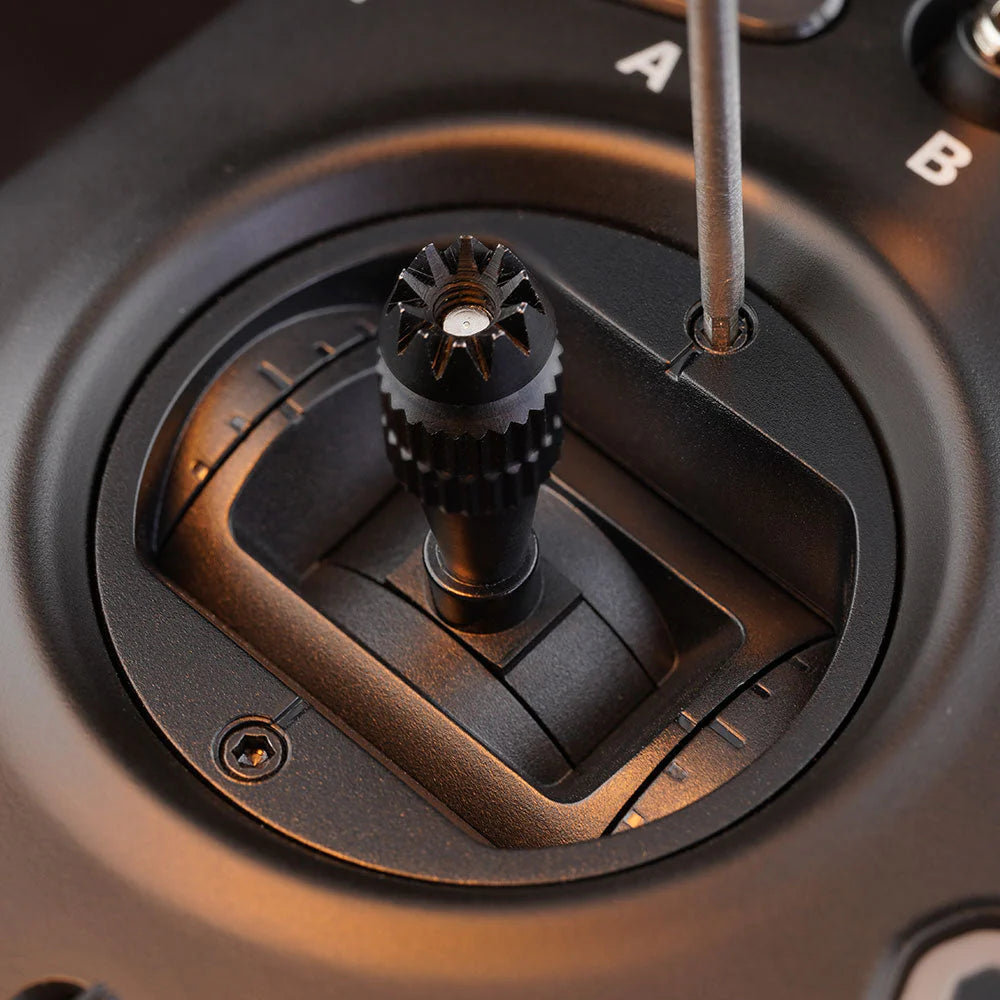

Precision hall-effect gimbals as standard

EdgeTX operating system installed from the factory

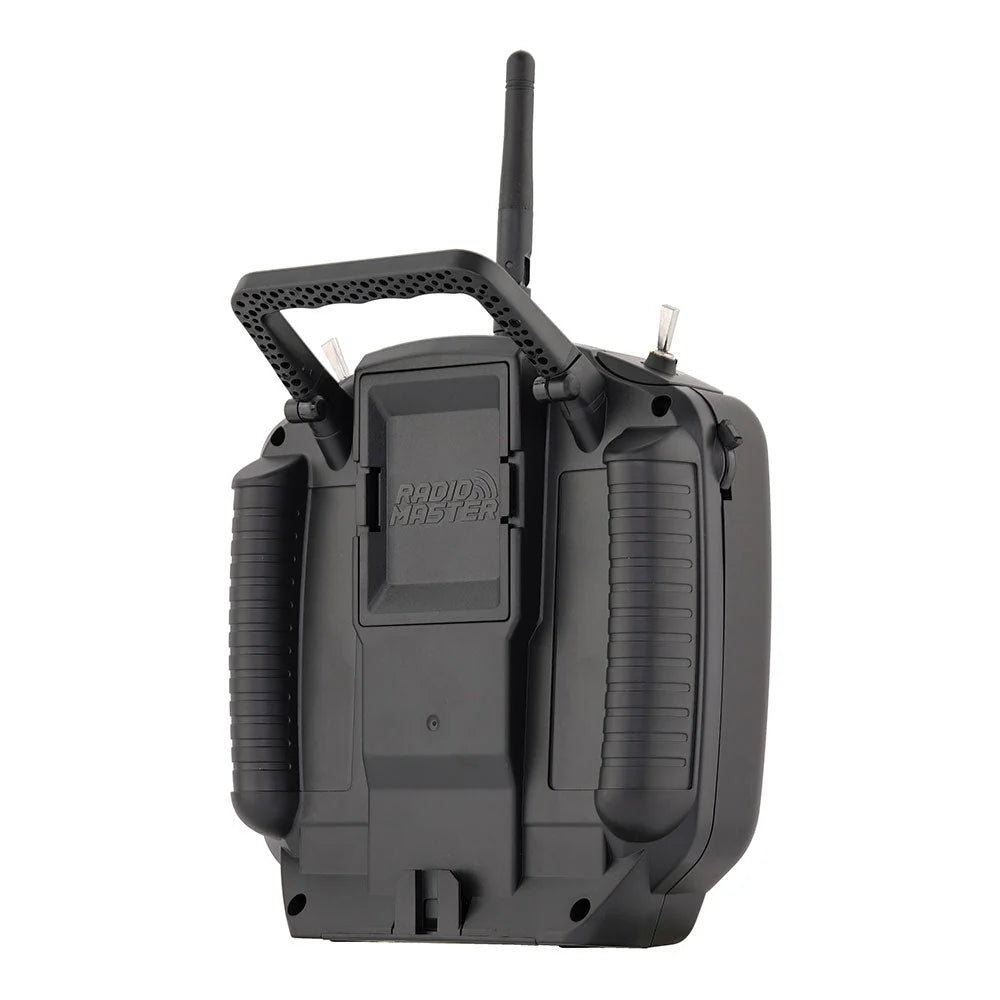

Updated rear case with comfortable grips

Improved S1 / S2 slider grip

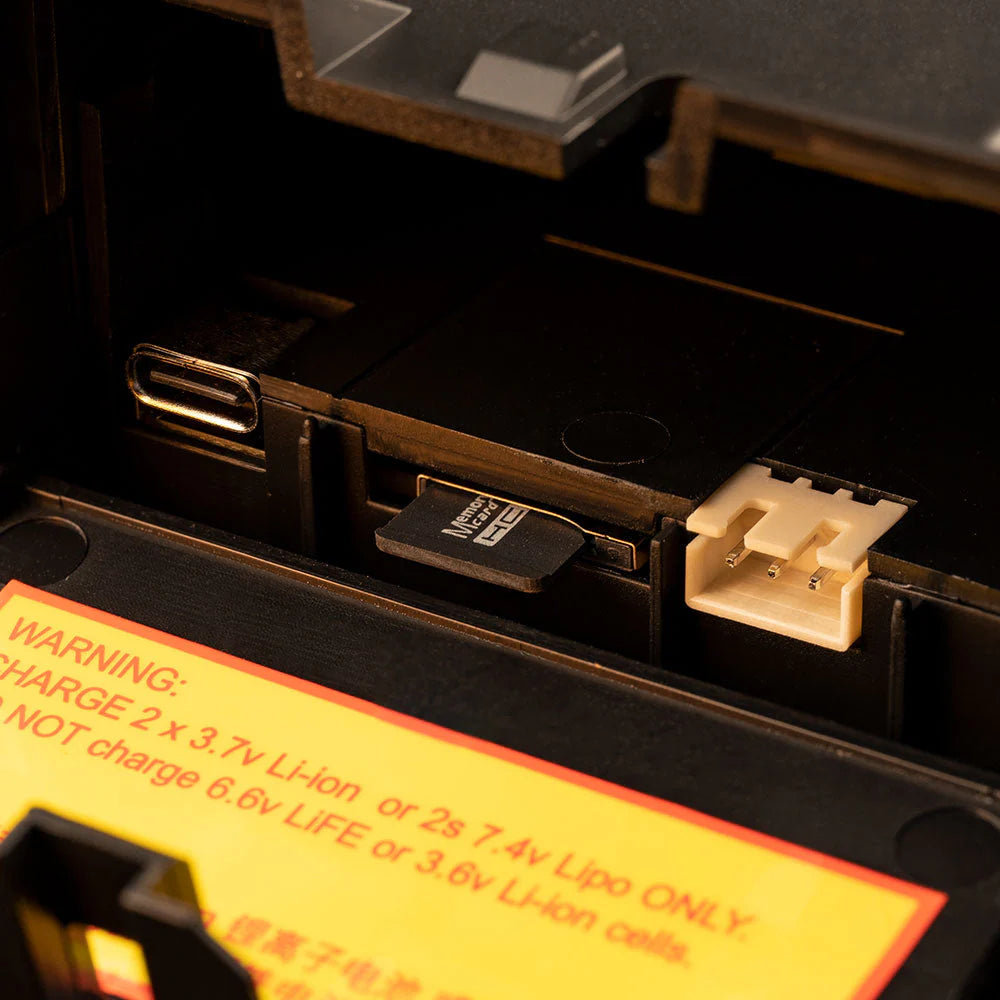

SD Card included

Provide M1 and M2 modes

Specification

Item: TX12 Mark II Radio

Size: 170*159*108mm

Weight: 363g

Frequency: 2.400GHZ-2.480GHZ

RF Chip: ExpressLRS (ELRS) / CC2500

Working Current: 320mA@8.4V (ELRS) / 180mA@8.4V (CC2500)

Voltage Range: 6.6-8.4v DC

Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module) / MPM (RF module)

Channels: Up to 16 (depending on the receiver)

Display: 128*64 Monochrome LCD display

Gimbal: High precision hall gimbals

External module: JR/FrSKY/Crossfire compatible

Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software

USB Charging: QC3 USB-C

SD Card: Included

EdgeTX Operating System

Preinstalled with EdgeTX, the RadioMaster TX12 MKII has cutting-edge software that is constantly evolving and improving. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.
